SD4VFF & SD5VFF
FAN SD4VFF
48″ Floor Fan with 1.5 HP Inverter Motor TEFC
Digital VFD Controller included with Variable Speed
31,000 CFM
Tiltable 30 degrees up or down
Stainless Steel blades for years of service
Quiet belt drive system
4 wheels with 2 locking/swivel
Only 28″ wide for door clearances
110V with 10′ power cord
FAN SD5VFF

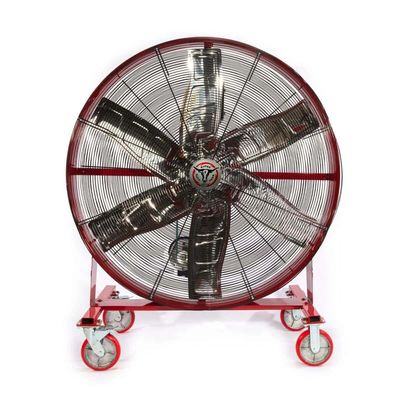

The SD5VFF industrial floor fan is built for big air movement on the go and where you need it most. With a totally-enclosed 1.5 HP Heavy Industry inverter motor and mounted variable speed controller, this fan can be moved and positioned to provide cooling airflow anywhere in your facility. Directional and locking castors will assure that it stays there. This setup includes OSHA compliant guarding for safety and can handle extreme ambient heat up to 135 degrees F.
Blade Options for the 5 Series Fans: Choose between our Krupp Stainless Steel Blades which throw a wide diffused air pattern up to 60′ wide, or our Red Composite Lineal Distance Blades which throw a high-velocity narrow & long air pattern up to 120′ long. The price is the same, and the Red Lineal Blades are slightly louder due to a higher RPM setting.
SD4VFF/SD5VFF
Weight
265 lbs
Diameter
59" Diameter
Motor
1.5 HP / Inverter motor / Class F Insulation / TEFC Industry Duty / UL
Controls
Variable Speed VFD 115/230VAC (115 Volt input standard)
Chassis
4 heavy-duty casters, 2 fixed, 2 locking and swivel
Power Cord
12’ input lead, 3 wire, 16 gauge, SJOOW, 3 prong plug, UL Listed
Blades
6 Krupp Stainless Steel, balanced, grooved for noise reduction and rigidity
Shroud
Steel formed, powder coated red
Noise Level
43.4 DB (taken 20’ from fan center)
Drive
Belt drive, cast motor pulley, high-performance kevlar belt
Bladeset Option
Stainless Steel, Red Lineal Distance
