SD4x & SD5X
FAN SD4X
The SD4X industrial fan is perfect for medium areas that need huge, even airflow. With a totally-enclosed 1.5 HP HP TEFC motor, it gets the job done, and is built to last a long time. Installation is a breeze, and it is efficient, quiet, and powerful. Hang at least 7’ from the floor, and at least 2’ from the ceiling. Those summer days get dangerously hot and this industrial fan moves big air to make it tolerable. The SD4X is also available in a variable speed option.

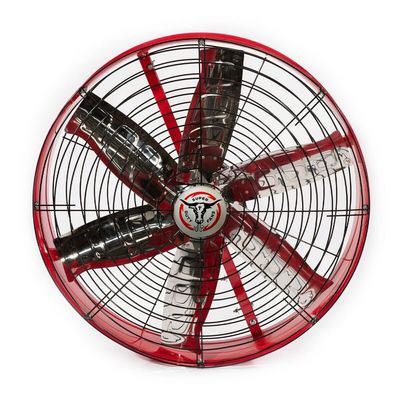

FAN SD5X
The SD5X industrial fan is perfect for mid-size to large areas that need huge, even airflow. With a totally-enclosed 1.5 HP TEFC motor, it gets the job done and will for many years to come. The SD5X is easy to install and maintain, just plug and play. Hang at least 10’ from the floor, and at least 3’ from the ceiling. A great value for the performance and durability.
Blade Options for the 5 Series Fans: Choose between our Krupp Stainless Steel Blades which throw a wide diffused air pattern up to 60′ wide, or our Red Composite Lineal Distance Blades which throw a high-velocity narrow & long air pattern up to 120′ long. The price is the same, and the Red Lineal Blades are slightly louder due to a higher RPM setting.
SD4X/SD5X
Weight
98/118 lbs
Motor
1.5 HP / 120 Volt / Single Phase / TEFC/ UL
Diameter
48"/59" Diameter
Speed Control
Single Speed
Mounting System
Quad-Strap System. 4 web straps 48”, 4300 lb. capacity each, 4 eyebolts, 4 carabiners
Power Cord
12’, 3 wire, 16 gauge, SJOOW for weather protection, 3 prong-plug, UL
Shroud
Steel formed, powder coated gloss black
Noise Level
28.7/33.6 DB (taken 20’ from fan center, hanging 20’ from floor)
Drive
Belt drive, cast motor pulley
Bladeset Option
Stainless Steel, Red Lineal Distance
